Specialty Services
Vertical Foundation
Vertical shaft installations and secant pile construction—a terrific addition to our trenchless program to support your shaft needs.

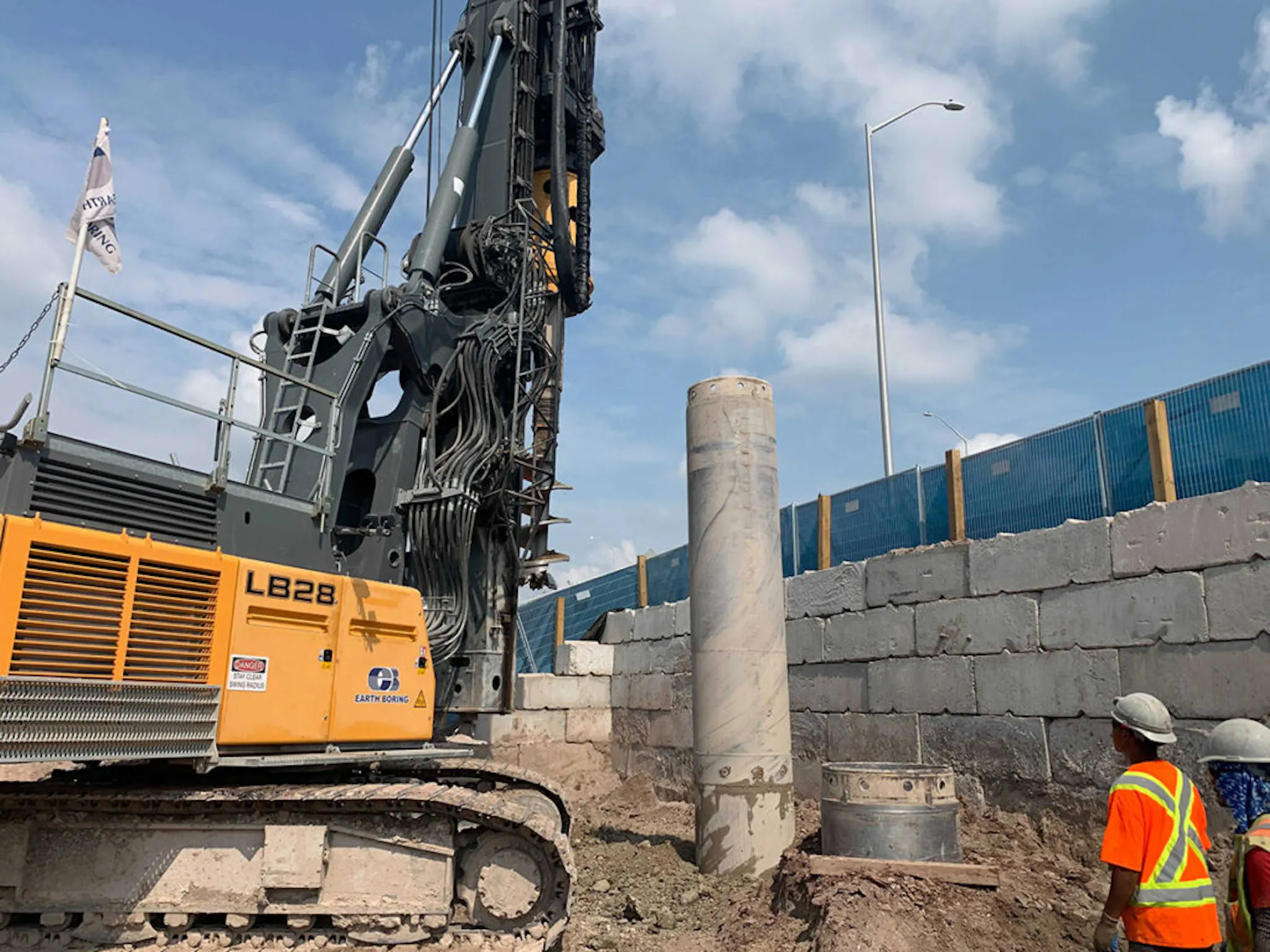

Secant Piles
Watertight Retaining Walls
Secant pile construction creates retaining walls or foundations using overlapping concrete piles. The process involves installing reinforced concrete piles into the ground with partial overlap, forming a continuous, watertight barrier.
Using primary (reinforced) and secondary (unreinforced or lightly reinforced) piles, this method is ideal for challenging soil conditions requiring high ground or groundwater control.
Shaft Sinking
Cast in Place and Precast Sinking Capabilities
Vertical shaft sinking is a specialized construction method used to create precise, vertical access shafts for underground infrastructure. These shafts provide critical entry points for tunneling, microtunneling, utilities installation, and long-term operations such as ventilation, maintenance, and material handling. Depending on ground conditions, shafts may be constructed using conventional excavation, mechanical methods, or caisson techniques, with temporary and permanent linings installed to ensure stability, groundwater control, and worker safety.
Successful shaft sinking requires rigorous geotechnical analysis, careful sequencing, and tight control of tolerances. Excavation progresses in controlled stages, with ground support, dewatering, and lining installation integrated into the workflow to manage risk and maintain productivity. When executed properly, vertical shafts enable safe, efficient underground construction while minimizing surface disruption—making them a cornerstone of modern trenchless and subterranean projects.
Deep & Dependable
Built on Solid Ground
From drilled caissons to earth retention systems, our vertical foundation expertise supports critical infrastructure projects with load-bearing capacities engineered for Ontario's diverse soil conditions, delivered on schedule and to specification.
Deep
Shaft Capability
100%
Watertight Barriers
Multiple
Pile Options
Full
Ground Control
Our Capabilities
Vertical Foundation Services
![[object Object] cover](https://images.prismic.io/ebtrenchless/aW_oOAIvOtkhBwUh_drilled-shaft-auger-casing-foundation.jpg?auto=format%2Ccompress&fit=max&w=2048)

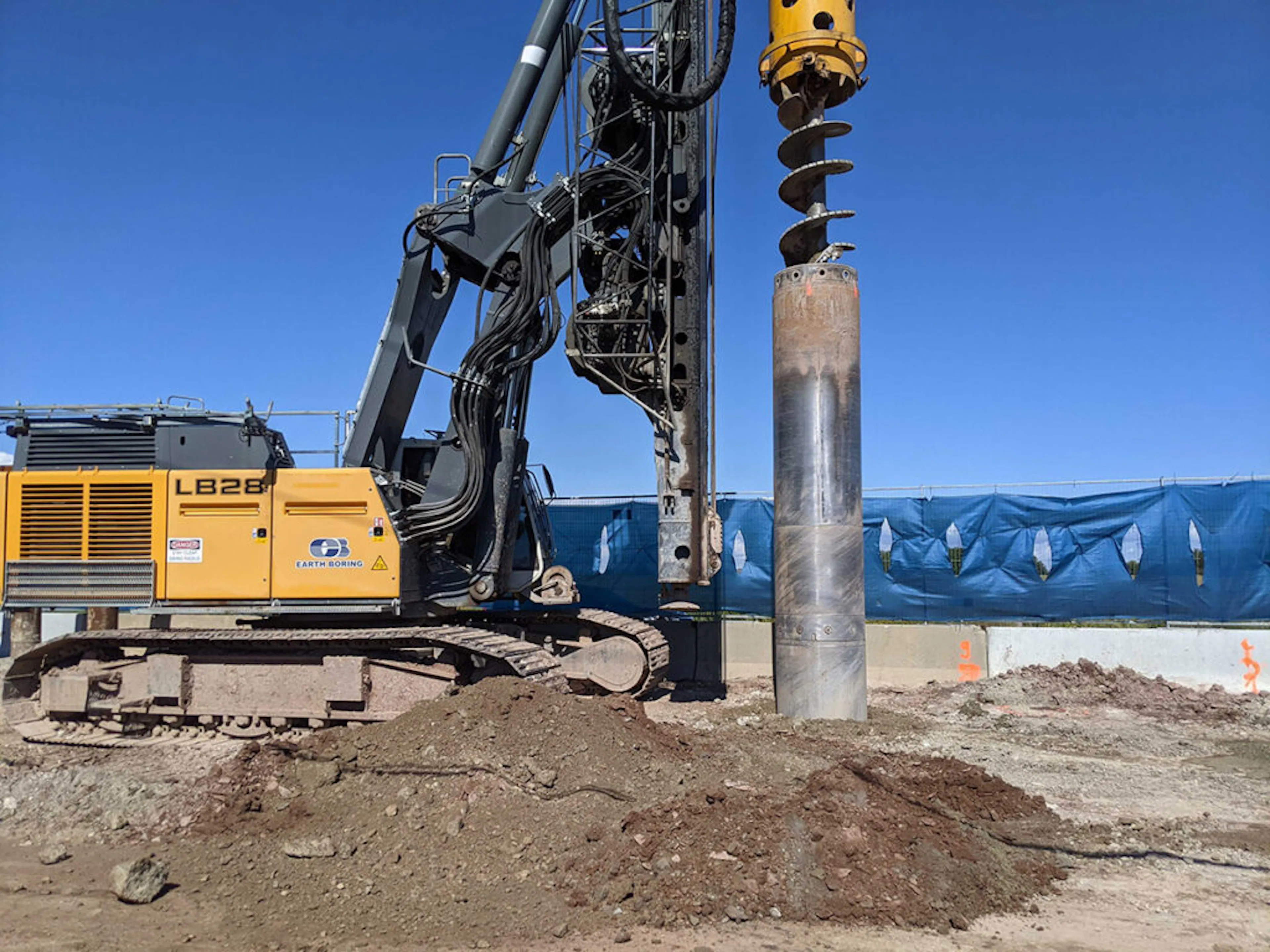

Vertical Secant Shafts
A specialized technique for building deep, vertical structures to support infrastructure projects. Essential for trenchless launching and receiving pits.
![[object Object] cover](https://images.prismic.io/ebtrenchless/aW_oNAIvOtkhBwUd_large-diameter-caisson-construction-urban.jpg?auto=format%2Ccompress&fit=max&w=2048)

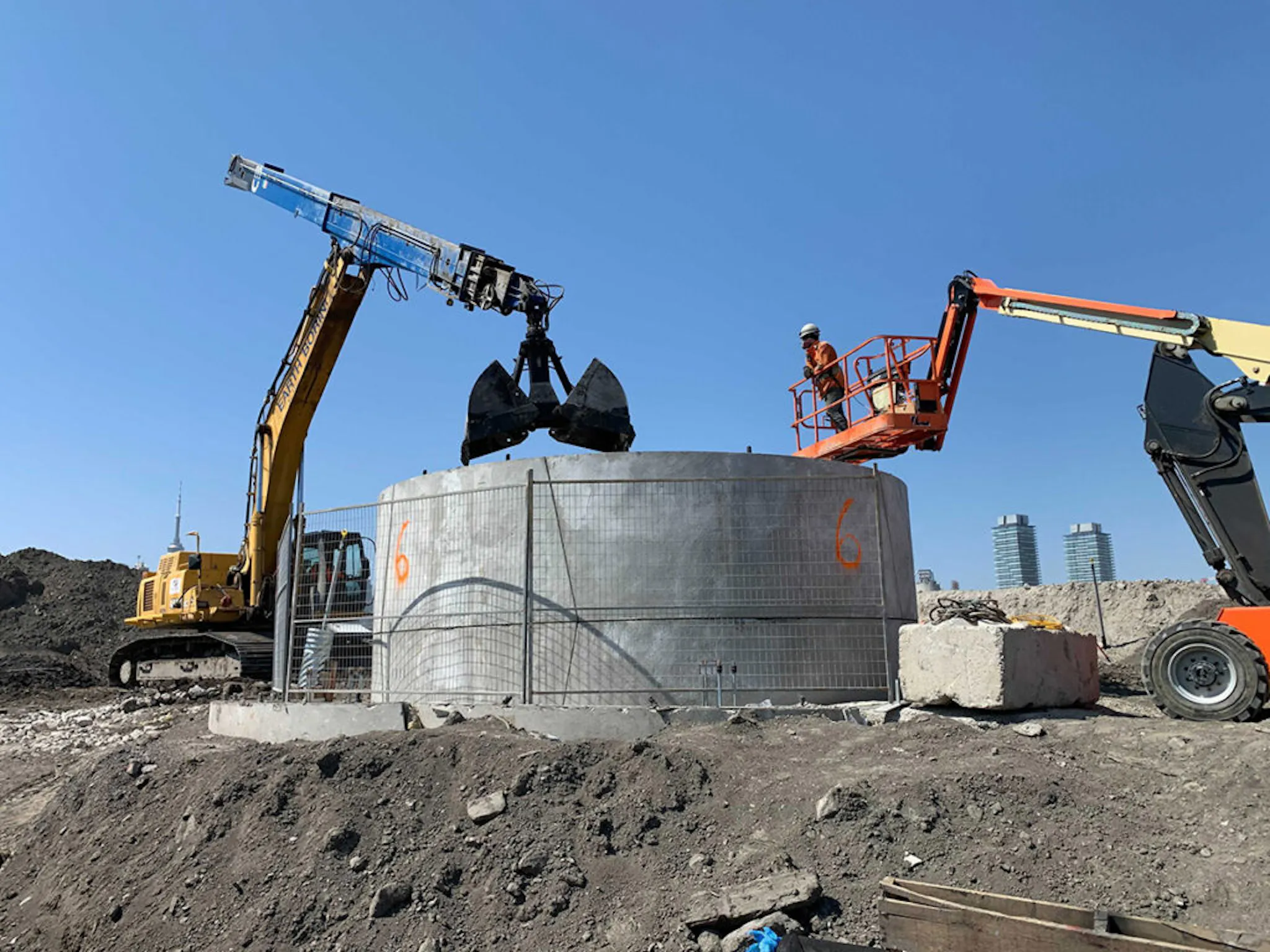

Shaft Sinking Construction
Creating retaining walls or foundations using overlapping concrete piles. Ideal for challenging soil conditions requiring high ground or groundwater control.
![[object Object] cover](https://images.prismic.io/ebtrenchless/aW_oNwIvOtkhBwUg_deep-caisson-excavation-shaft-construction.jpg?auto=format%2Ccompress&fit=max&w=2048)

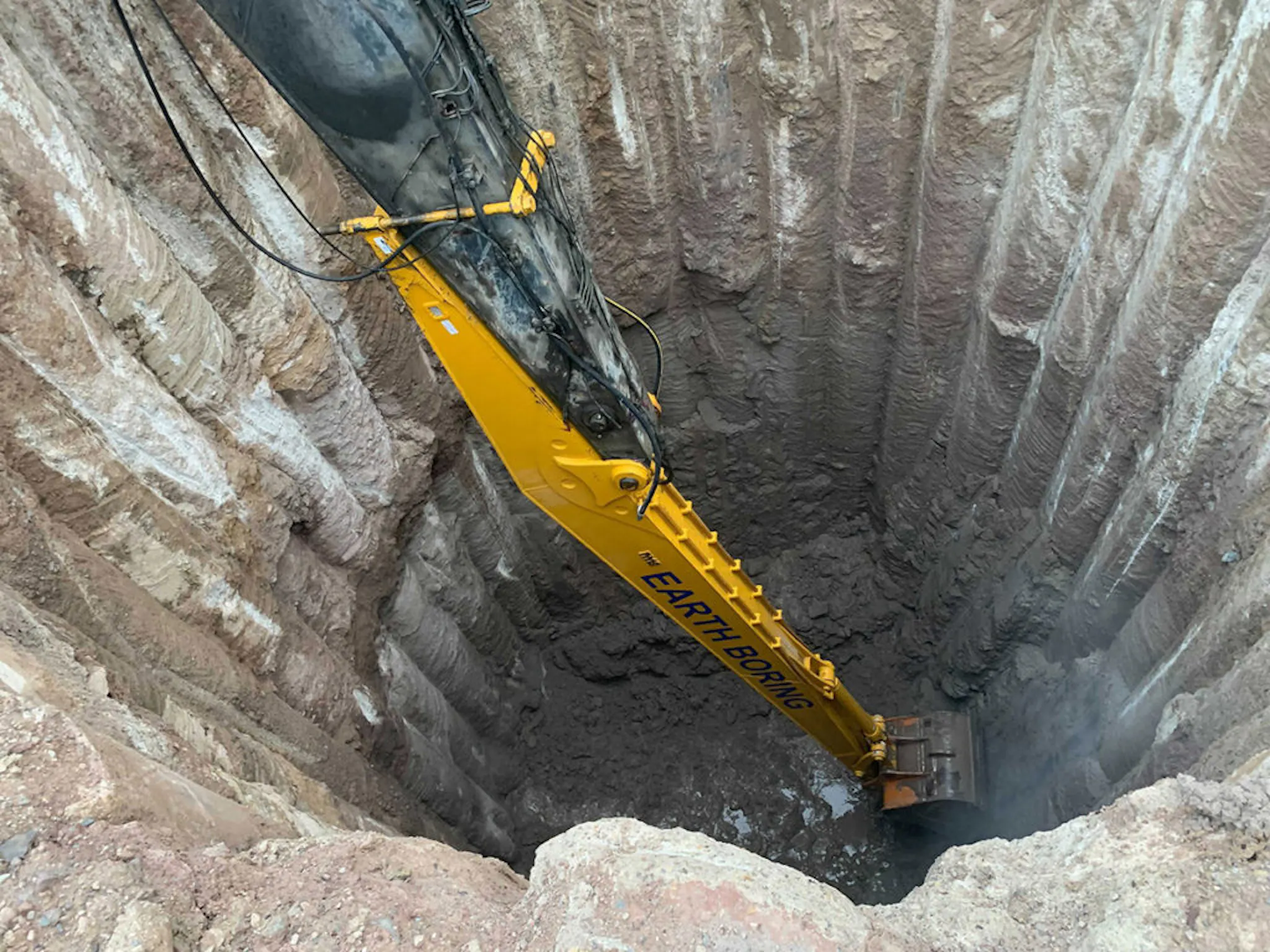

Structural Foundations
Deep foundation solutions for infrastructure support. Cast-in-place and precast segmental options available based on project requirements.
Vertical Foundation Specifications
Comprehensive vertical foundation capabilities to support your underground infrastructure projects. From shafts to secant piles, we deliver complete solutions.
What we offer:
Shaft Types
Launch shafts, receiving shafts, access shafts
Secant Piles
Primary (reinforced) and secondary piles
Wall Type
Continuous, watertight barrier
Foundation Options
Cast-in-place, precast segmental
Applications
Trenchless pits, retaining walls, foundations
Integration
Complements trenchless program
Our Certifications & Affiliations
Trenchless Services Offered
Build Strong
Foundation Solutions
That Go the Distance
Partner with our deep foundation team to engineer and install earth retention and load-bearing systems tailored to your project's unique requirements.
